603
Item nr.
| Production | China, 2025.
Price was € 20.79. |
|---|---|
| Bands | AM, FM. |
| Cabinet | Aluminium. Size 11.5x9x4cm. Weight 214gr. |
| Power | Built in LiOn. |
| Documents | Manual. |

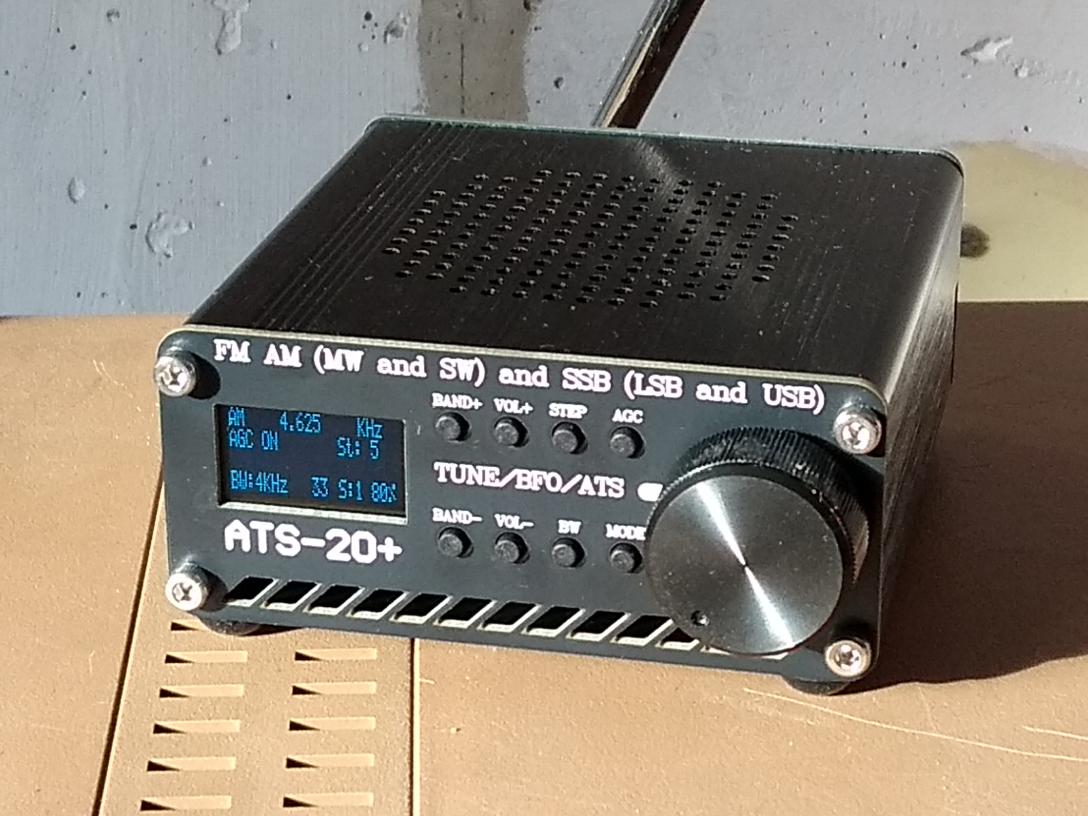

The ATS20+ is not very friendly to operate. It's form factor makes it hard to use it standing before you. Tuning always starts at the same point within one band and it takes a lot of knob rotations to get you to the desired frequency.
Not surprisingly, the results of this radio improve drastically with a better antenna, like a loop. Using my 80 loop, I receive broadcast and amateur stations on Tropical and Europe Band. The sound quality of SSB broadcasts is a nice surprise, and BFO control is very smooth (with optional 10 or 25Hz steps).
A nice feature (also mentioned in the manual): when you connect an earphone, it works as antenna for FM so you can carry this set in your pocket without the whip aerial. My unit has two USB jacks, a mini type for updates and a C-type for charging. My display is not LCD but LED (blue).
| Obtained | 5/2025 from AliExpress. |
|---|---|
| Condition | 10. |
| Disposed | Sold 9/2025. |

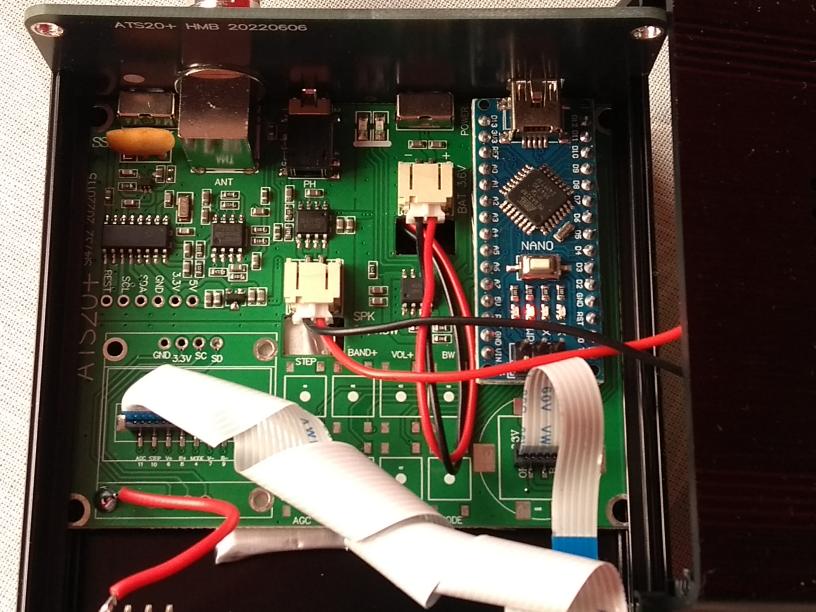

Whe we remove the top (containing the speaker) we can see how few parts make a DSP radio.
