Gerard's Erres KY505

156
Item nr.

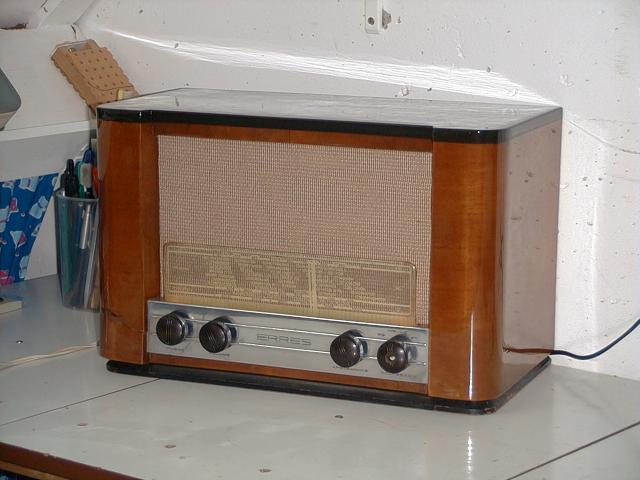

Erres KY505 Table top

**Data for Erres KY505**
Production	The Netherlands, 1950. Price was 240 guilders.
Bands	LW MW SW.
Tubes	ECH42 EF41 EBC41 EL41 AZ41.
Cabinet	Wood. Size 43x28x23 cm.
Power	AC (110-240V) 40W.

The Design

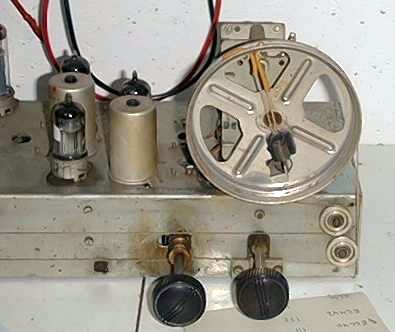

The Erres KY505 is a very standard 1950 radio, like workers' families would have after saving their money for several years. The Van der Heem radios technically ressembled Philips a lot, like all radios in The Netherlands did, But a typical Van der Heem aspect is the large tuning capacitor drive wheel depicted above.

Obtained	5/2000 from Gerwin.
Condition	7.
Disposed	Sold 1/2002.

This Object

As a young boy I was once given my first tube radio: an Erres KY505. This radio has long found its way to the dump, but I was happy to be able to get another one of the same type. I gave it an electrical overhaul and replaced the grille cloth.

Part of Gerard's Radio Corner.
