498
Item nr.
| Production | The Netherlands, 2019. |
|---|---|
| Semi- conductors | LA4192 (amp IC), 4x 1N4007 (rect). |
| Cabinet | Wood. |
| Power | AC 230V (2W). |

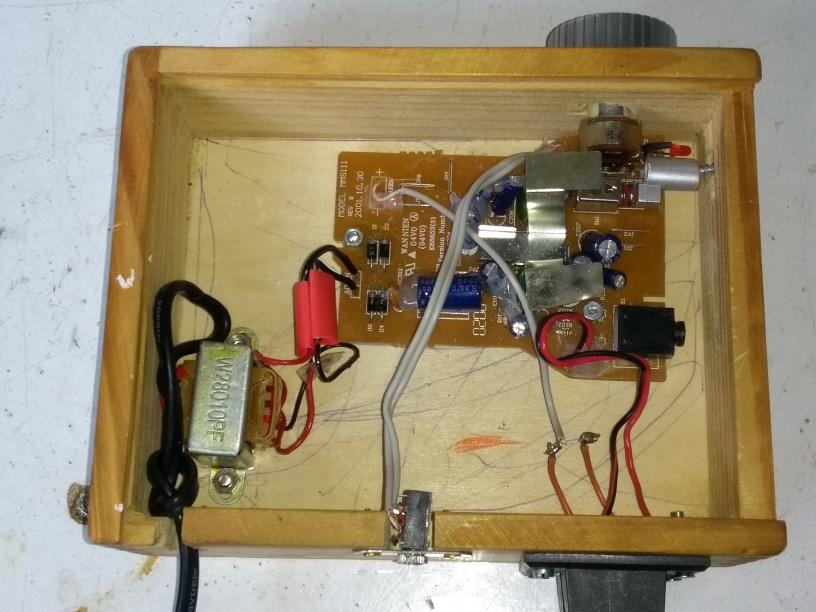

The PCB seems to be some standard thing, used in various consumer products. It has markings Model MMS111 Rev B, Wan Nien 04V0 (94V0), and E88653(S), but I haven't been able to figure out their meaning.
| Obtained | 8/2019 from Home built. |
|---|---|
| Condition | 9. |
| Disposed | Sold 3/2023. |

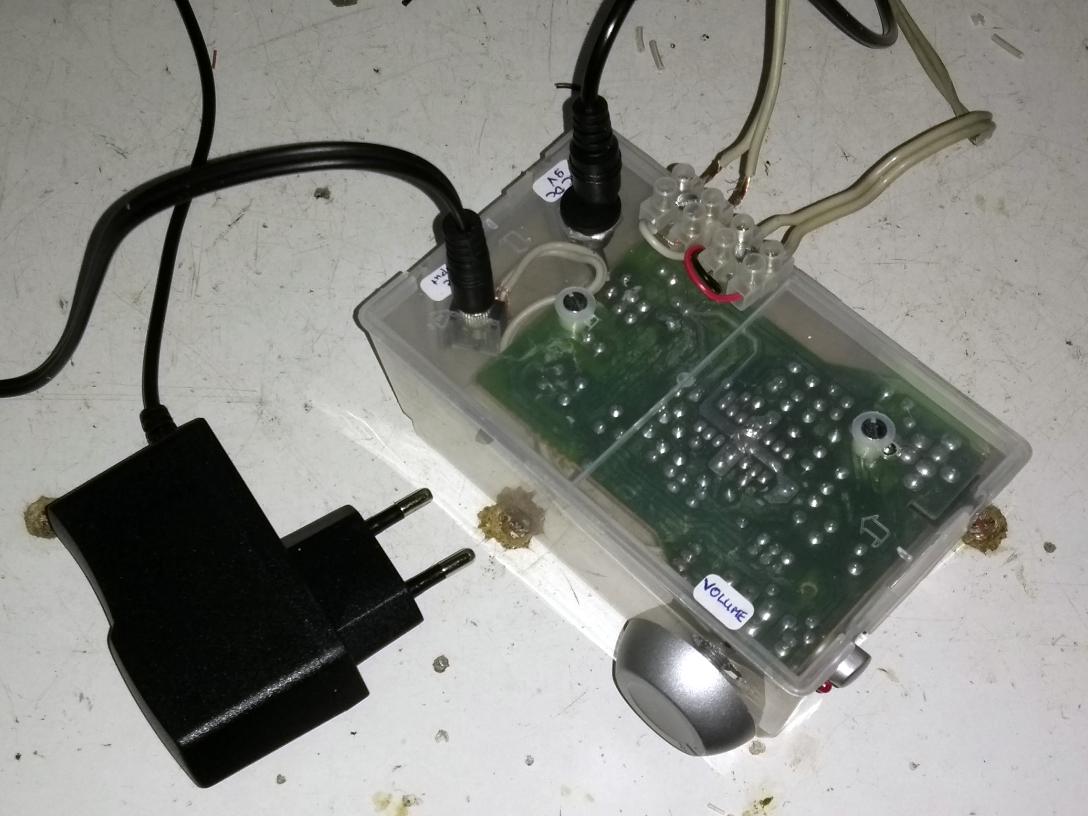

was salvaged from a wrecked Philips PC speaker set that I used before for some failed experiments. The board is fed directly from a power transformer, and contains rectifying diodes. So, it can be supplied with either AC or DC. I used the amplifier for some years, built into an emptied plastic box of nails. If the source had volume control, the amp need not be in view and can be ugly.

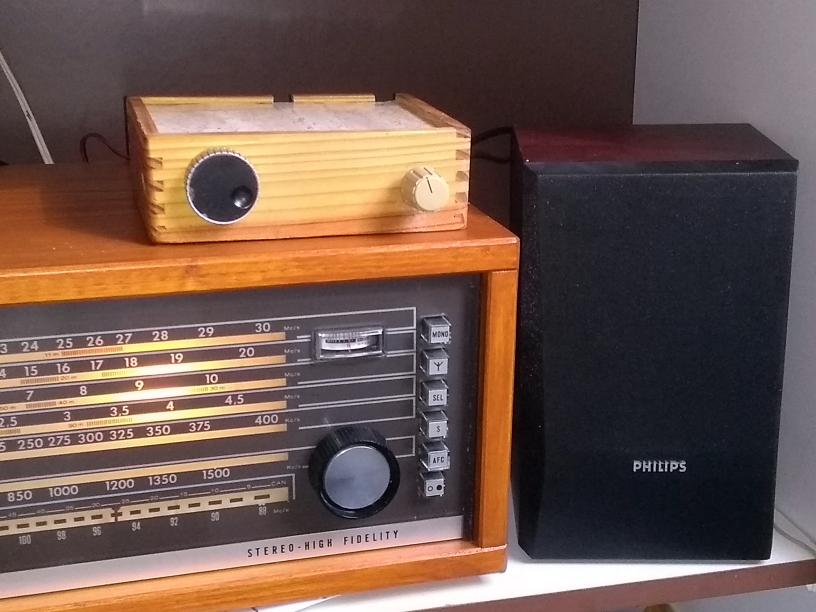

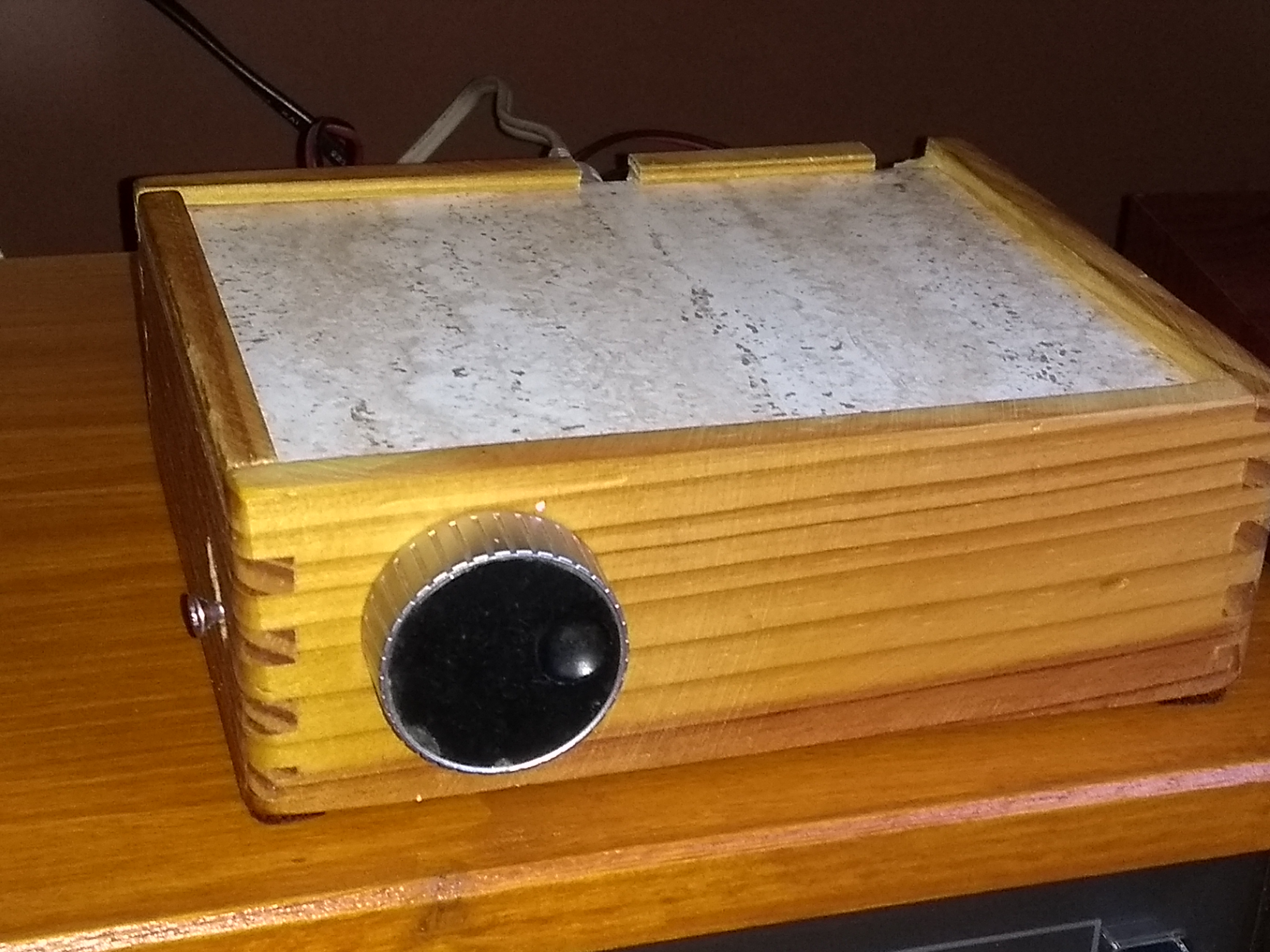

To use it with my Philips A6X38AT tuner, it will be in sight because the tuner has no volume control. So I picked up some wood box from the thrift shop for this amplifier. I combined it with the power transformer of a scrap clock radio. I installed a main switch to eliminate vampire draw (which would be about 7€ per year otherwise).
