615
Item nr.
| Production | England, 1960. |
|---|---|
| Tubes | ECC81 (osc), 2xECC83 (amp), EZ90 (rect). |
| Semi- conductors | Bridge rectifier. |
| Cabinet | Steel. Size 50x30x26cm. Weight 12kg. |
| Power | AC 20W. |
| Documents | Manual, Slide deck. |
| Obtained | 8/2025 from Gert van Wee; sn=JA705/062. |
|---|---|
| Condition | 8. |
| Disposed | Sold 3/2026. |

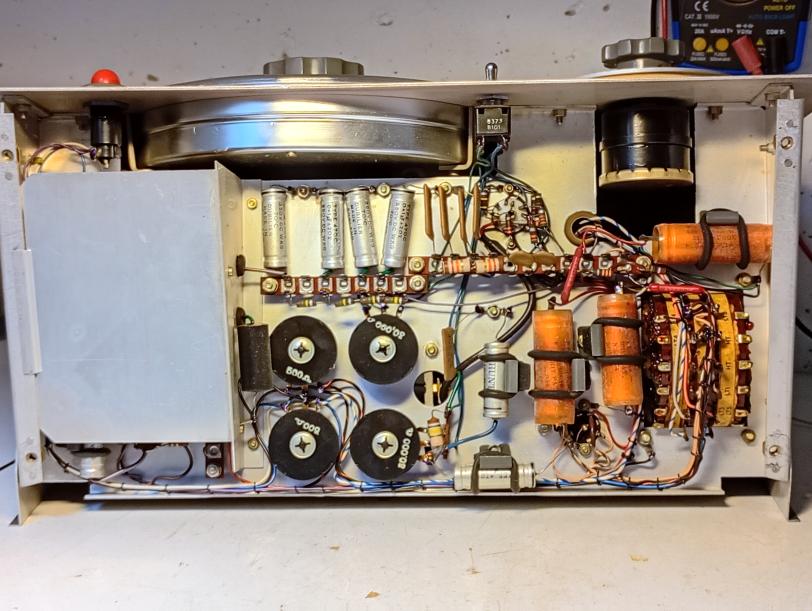

The inside shows some paper capacitors (Hunts) that could use replacement. I also replaced the metal recifier that supplies the DC for resistor measurement, and smoothed its output with a 220R resistor and 470uF cap. The bridge now works fine. Some of the controls are a bit scratchy, but the potmeters are all of special quality and are probably near impossible to find in good condition.
