477
Item nr.
| FOR SALE for EUR 6,8 Conditions |
|---|
| Production | China, 1991.
Price was 170 guilders. |
|---|---|
| Bands | MW (530-1600kHz), FM (88-108MHz, 5 presets). |
| Cabinet | Plastic. Size 29.5x17x8cm. |
| Power | Batt 6xD or AC 220V (listed 8W, measured 1.0/2.0/2.6W) (or DC jack). |
The ineffective transformer based power supply draws about 2W from the mains to produce this half watt, and over 1W to produce nothing! If you plug in this radio but don't use it, it will cost you over 2 euros per annum of power. Better replace the transformer based supply by a switched power supply. This reduces the overall consumption by about a Watt, so you'll save the environment and the pay-back time of the supply is about 1 year.
There is also a related type AE2306, which is almost similar to this one, but without the AM band. For France, where Long Wave was quite important, there was a type AE2302 with Long instead of Medium Wave.
| Obtained | 3/2018 from NVHR Swap Meet; sn=KT019225040378. |
|---|---|
| Condition | 8. |
| FOR SALE | Price is 6,8 Euros. |
| Sound sample | PLAY SOUND Using the five preset buttons, the senior citizen can get quick satisfaction from switching between Slotstad Radio, NPO1, NPO2, Radio M Utrecht, NPO Klassiek, and back to Slotstad. |

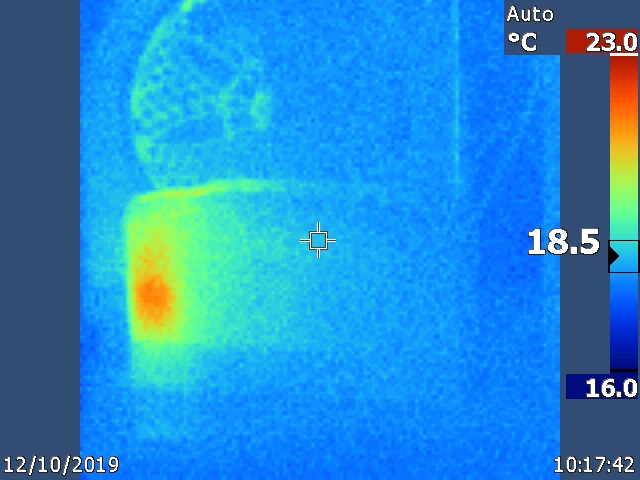

Because this radio is regularly in use in our Red Room, and plugged continuously, the vampire draw of 1W annoyed me a lot. The heating effect on its environment is of course not humanly detectable, but can be visualised with an IR-scan. In March 2019, I installed a DC jack. Power consumption (measured OFF/FM) is 1.0/2.0W with the built-in supply, 0.1/0.7W with a 9V switched mode supply, and 0.1/0.5W with a 5V USB charger. However, with just 5V the radio plays a bit distorted, and the vampire reduction is nil. So I use the radio with a 9V supply, which costs about 2 euros (with the jack), and saves about 2 euro's per year.
