Gerard's Philips B3X92A

596
Item nr.

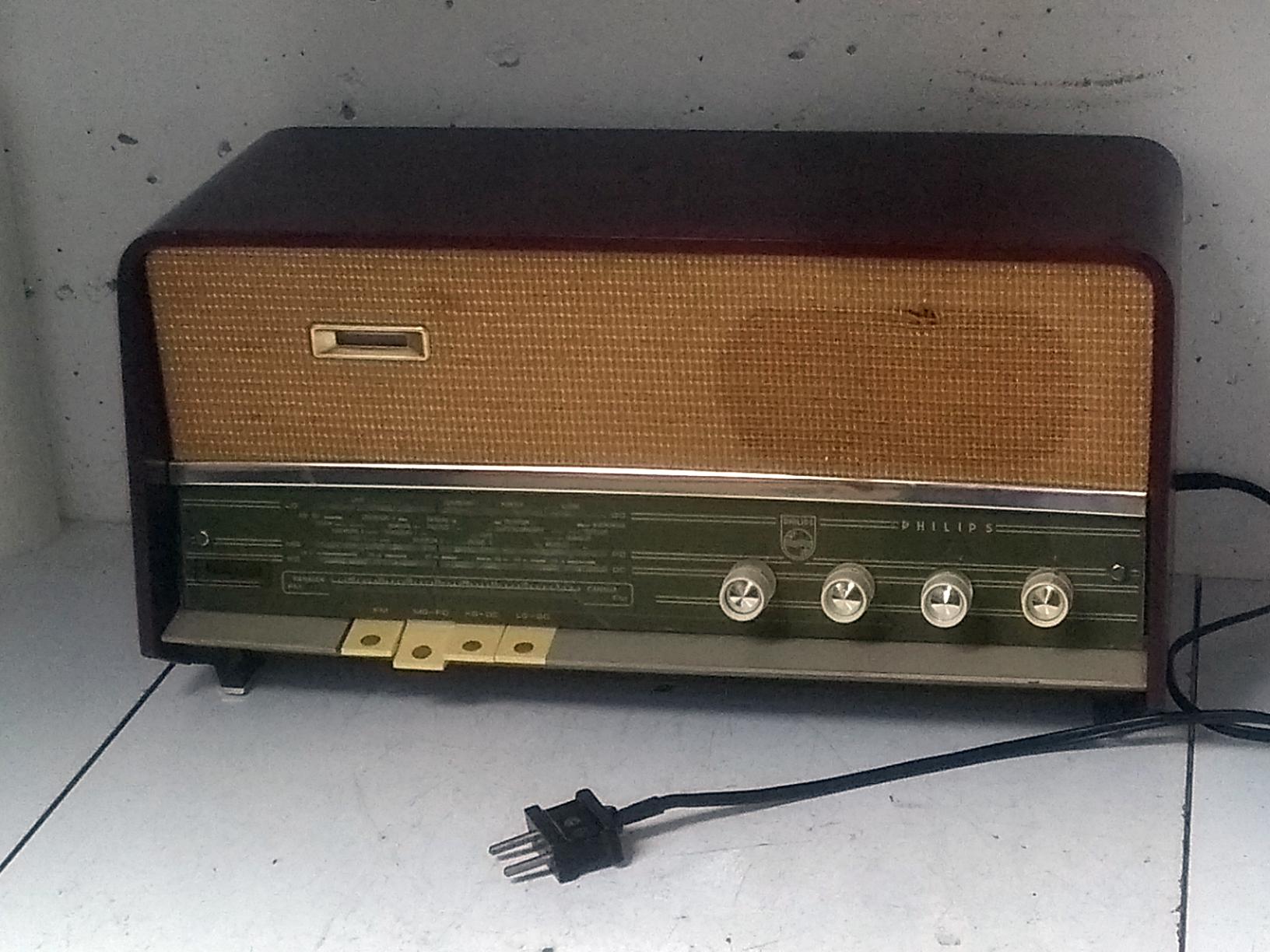

Philips B3X92A Table top

FOR SALE for EUR 15 Conditions

Basic plano model

**Data for Philips B3X92A**
Production	Benelux, 1959.
Bands	LW (150-260kHz), MW (517-1620kHz), SW (5.9-18.2MHz), FM (87.3-100.2MHz); IF 452kHz, 10.7MHz.
Tubes	ECC85 (FM tuner), ECH81 (mix.), EF85 (IF), EABC80 (det. & AF amp), EL84 (output), EZ80 (rect.), EM84 (tuning eye).
Cabinet	Wood. Size 43 cm (width).
Power	AC 52W.
Documents	Schema.

The Design

This B3X92A is identical to the B3X02A, which came out one year later, and is a very common radio. I had one before, that was just 40 years old, but this one is in better condition.

While most tube radio's have the LF part on the right and the RF section on the left, when seen from behind, this model is built the other way around.

Obtained	8/2024 from Kringloop Wullie Hen't (Barneveld); sn=PL15309.
Condition	8.
FOR SALE	Price is 15 Euros.

This Object

I replaced a handful of capacitors and found R16 (feeding the AF amp) interrupted. Replacement (plus correcting the coupling capacitor I wrongly applied) brought the radio to life. Sensitivity was improved with a replacement of the ECC85 by a PCC88 and placing a better ECH81. The tuning eye EM84 was dead and I replaced that, too.

The thrift shop's suggestion to use the radio was to build in a bluetooth speaker and some christmas tree light bulbs, but I had something better in mind. First, of course, take it home on my bike, then a repair to make it work like it did 65 years ago.
