Gerard's Philips L4X25T

584
Item nr.

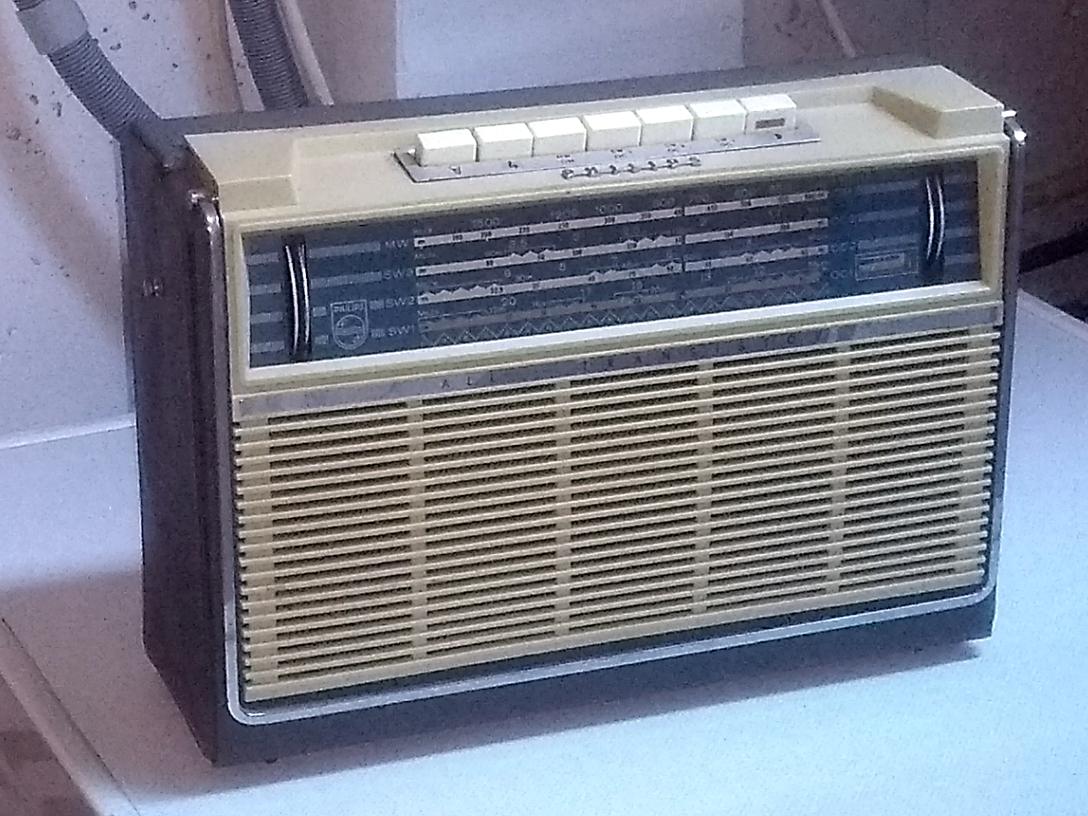

Philips L4X25T Henriette

Tropical Henriette with S-meter.

**Data for Philips L4X25T**
Production	The Netherlands, 1962.
Bands	MW (517-1622kHz), 3xSW (1.6-3.9MHz, 4.65-9.9MHz, 11.6-21.85MHz).
Semi- conductors	AF116 (Conv.), OA79 (Limiter), AF117 (1st IF), OC45 (2nd IF), OA79 (det.), OC75 (AF amp), OC75 (Driver), 2x OC74 (Output).
Cabinet	Wood/plastic. Size 31x22x10cm.
Power	Batt 9V (6xD).

The Design

Obtained	6/2023 from Sietze Osinga.
Condition	5; parts set.
Disposed	Sold 12/2024.

This Object

It was in marginally operational condition. I fabricated a leather strap for carrying handle. I took the RF chassis apart from the IF/LF part (desoldering some 20 wires) and realised it would be a difficult job to put it all back (after figuring out where it all goes). Finally I threw the thing in a corner, where it waits until I collect more courage or some other destination comes up.
