Philips 208U-05 Mini Radio

The first Philips radio after World War 2.

**Data for Philips 208U-05**
Production	The Netherlands, 1944. Price was 135 guilders.
Bands	LW (750-1910m), MW (196-570m), SW (16,5-51m) .
Tubes	UCH21 UCH21 UBL21 UY1N .
Cabinet	Bakelite. Size 25x16x14cm. Weight 2.75 kg.
Power	ACDC 110/220V, 34W.
Documents	Service Doc.

The Design

All through the occupation, Philips engineers had hidden some stock of radio parts from the Germans in the Philips plant's attics, and they were able to construct a transmitter within weeks. Herrijzend Nederland aired in October 1944. Radio production was started almost immediately, and the 208U was the first post-war model. This model history makes the type interesting (in my view), but it is not very rare; a significant number of 208U were produced.

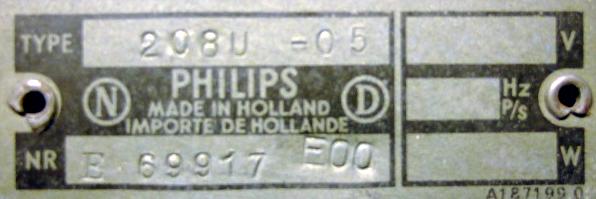

Obtained	Was never mine, Repaired for Tanneke, sn=E69917, 9/2013.
Condition	9.
Sound sample	PLAY SOUND Discussion about production of chocolate and related products.

This Object

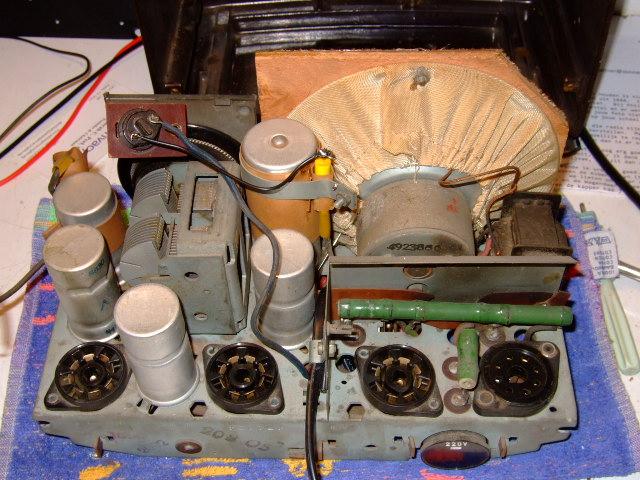

The radio was handed to me with a complaint of too much hum. This often is caused by a leaking coupling capacitor. This causes the current through the output tube to rise, and thus the smoothing effect of the filter caps is insufficient. When inspecting the set, I found that the power chord had been replaced by a white chord, and there was significant cracking from the volume pot.

I decided to change the coupling (C106) and rattle (C110) cap, the output tube decoupling elco (C75), and the power chord. I cleansed the volume pot.
