121
Item nr.


Russian Tse4315 Multimeter

It looks a bit old-fashioned but is actually a reasonably well built and good quality product of the Soviet electronics industry.
Data for Russian Tse4315
ProductionUSSR, 1983.
CabinetBakelite. Size 11.5x21x8 cm. Weight 900 gr.
PowerBatt 4.5V.

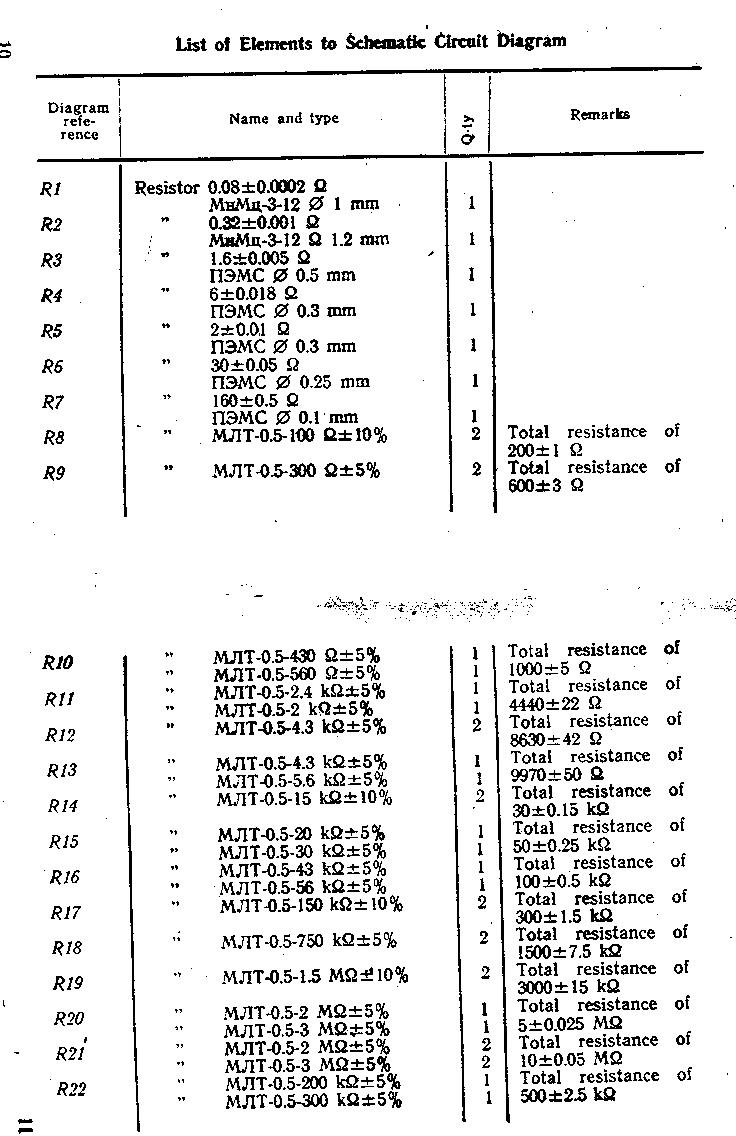

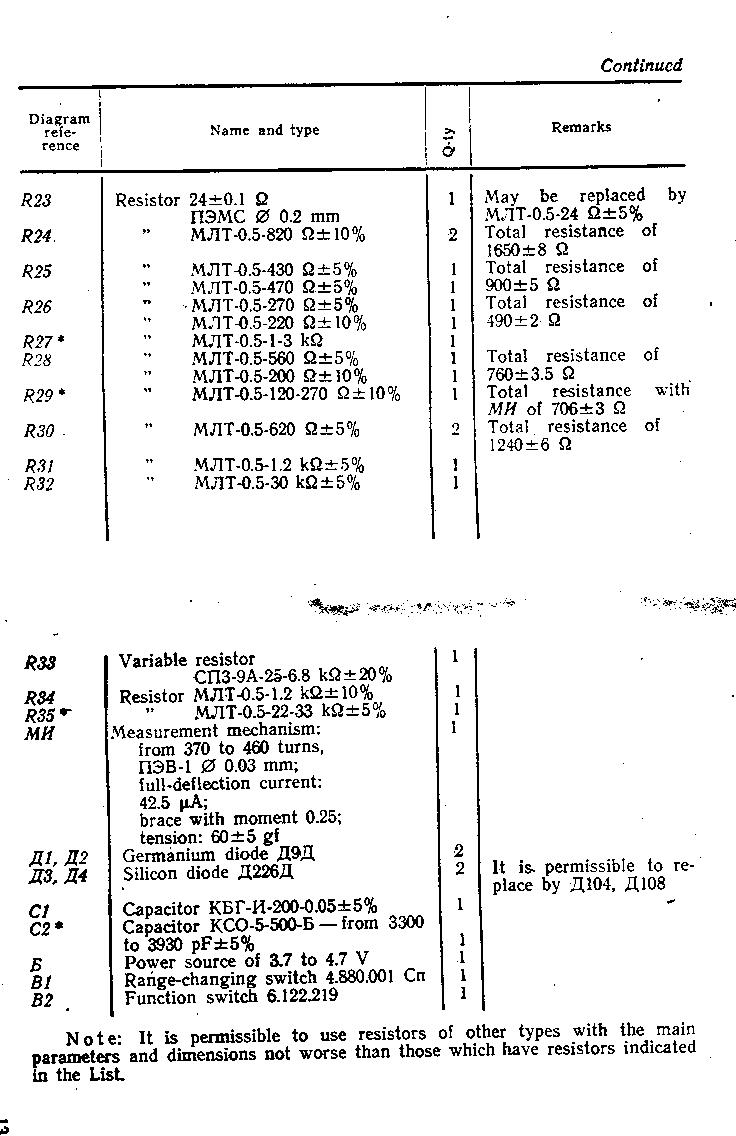

DocumentsUser instructions, schema, Component list part 1, part 2.

The Design

The meter had a peculiar way of measuring capacitors: one is supposed to connect the capacitor in series with a 220V power line and the instrument measures the AC current that flows through it. Better not try this with a capacitor of low voltage!
Obtained2/1999 from Paul van Berlo.
Condition9.
DisposedSold 4/2012.

This Object

This and its brother the Tse4341 were bought together through Paul van Berlo.
Part of Gerard's Radio Corner.
